Analysis

The design of ritual is a fascination of mine. So if there’s ever a sci-fi movie showing of The Star Wars Holiday Special, that should be one topic for the hangout afterward. What does it purport to mean? Why do non-Wookiees get the starring role? Why the robes? What’s with the unsettling self-centeredness of having essentially North-American Christian rites?

But in this house we talk interface, and that means those orbs.

Physical Interface

The orbs’ physical interface is fit to task. Because they’re spherical, they can’t be easily set on a surface and put “out of mind.” (Kind of like a drinking horn, but no one gets inebriated in the Star Wars diegesis.) The orbs must be held and cared for, which is a nice way to get participants into a reverent mood. It also means that at least one hand is dedicated to holding it throughout the ceremony, which might put participants into a bit of active meditation, to free the body so the mind can focus and contemplate: Life and Days.

Visual design

The transparency and little lights within are also nice. Like the fairy lights common to many winter celebrations, they engage a sense of wonder and spectacle. Like holding fireflies, or stars in the palm of your hand. They speak a bit to the Pareto Principle, related to the notion that life is rare, precious, and valuable. The transparency also brings the color and motion of the surrounding environment into attention as well, speaking of the connectedness of all things.


Turning them on

I presume this is automatic, i.e. the lights illuminate just ahead the datetime of the ritual. They either have a calendar or some technology in the home automatically broadcasts the signal to come on. They could even slowly warm up as the ritual approached to help with a sense of anticipation. This automation would make them seem more natural, like a blossoming flower or budding fruit. You know, life.

Activation: Go there

If part of the celebration of Life Day is about togetherness, well then having the activation require literally gathering the family together with the spheres in hand is pretty on point. There’s even feedback for the family that they’re close enough together when the orbs signal the family’s Hue lights to dim and turn on the watery-reflection projection.

Note it also has to have some pretty sophisticated contextual awareness. Note that it only started once all four Wookiees were close together. Recall that Chewie almost didn’t make it home for Life Day. Would they have just been unable to participate without him? Doubtful. More likely they somehow know, like a Nest Thermostat, who’s home and waits for all of them to be in proximity to kick things off.

Note also that it did not start when they were in their storage basket, but only when they’re held up in the living room. So it also has some precise location awareness, to.

Sidenote: Where is there?

Where is the Tree of Life and how does the orb help them get there?

Literal

The Tree of Life is real, on Kazook/Kashyyyk and the orbs provide a trippy means of teleportation to this site. This would mean the Wookiees have access to teleportation tech that they don’t use in any other way—like, say, in their struggle against the Empire. So, this seems unlikely.

Virtual

Since it’s not literal, and I can’t imagine the whole thing being some sort of metaphor, the other possibility is that the tree is virtual. This would help explain why there are only a few dozen Wookiees around this single sacred tree on its high holy day: It’s not bound by actual physical constraints. This raises a whole host of other questions, such as how does it project the perceptual data into the Wookiee’s senses that they’re robed, and walking the star bridge, and at the tree?


So…pretty nice

All told, the orbs design helps reinforce the themes of Life Day, cheesy and creepy as they are.

You know, when The Star Wars Holiday Special came out, this “technology” was pure fancy. But that now we have cheap, ultrabright LEDs, tiny processors, WIFI chips, identity servers, all sorts of sensors, and Hue lights. If anyone wanted to build working models of these as an homage to an obscure sci-fi interface, it’s entirely possible now.

Airport Security

by

3

After fleeing the Yakuza in the hotel, Johnny arrives in the Free City of Newark, and has to go through immigration control. This process appears to be entirely automated, starting with an electronic passport reader.

jm-9-customs-b

After that there is a security scanner, which is reminiscent of HAL from the film 2001: A Space Odyssey.

jm-9-customs-f

The green light runs over Johnny from top to bottom. Continue reading →

Fuel cell

by

0

fifthelement-233

Just before the spaceship takes off for Fhloston Paradise, the audience gets to see the manual interface that the airport employees use to refuel the ship. On the tarmac beneath the spaceship, the ground crewman plugs in a portable control box to the underside of the plane, and presses a button to open a hatch in the ground, from which a new, glowing green radioactive fuel cell emerges.

One of the crewmen grabs it by its circular handles at the end, removes it from the hatch, and sets it on the ground.

He then uses the plugged-in control box to open a compartment on the underside of the spaceship, from which one of the ground crew removes the spent fuel cell by hand, and inserts it into the still-open hatch.

Finally they pick up the full fuel cell and insert it into the compartment on the plane.

fifthelement-237

This scene is there to set up how Cornelius stows away on the craft, but also serves as a cinematic pun when it crosscuts to a scene inside the ship (but which must be seen rather than read to appreciate.) For such a “throwaway” technology, it’s handled really well.

  • The ground affords natural shielding from any collection of radioactive fuel cells.
  • Being circular, the cells and the handles to manipulate the cells are orientation-less.
  • There are familiar black-and-yellow-stripe warnings on the walls of the hatch and the revealed sides of the spaceship compartment. These warnings are only visible when it’s relevant.
  • The radioactivity trefoil symbol has the same colors and appears on the fuel cell, the hatch, and the compartment.
  • Having a portable and wired control box means that it’s not readily available for any passing hackers.
  • The transparent container lets the material act as an additional warning to observers: There is danger here.
  • The transparent container lets the fuel itself tell the ground crew which cell is spent and which one is full.

All told, short of making it automated, this is how it should work.

fifthelement-238

Pneumatic Mail

by

5

fifthelement-194

Korben receives physical mail to a transparent, flat pneumatic tube in his apartment. When new mail arrives, he hears a whoosh, the envelope drops into place, and the plastic material that the tube is made of becomes edge-lit with the film’s signature orange color.

fifthelement-193

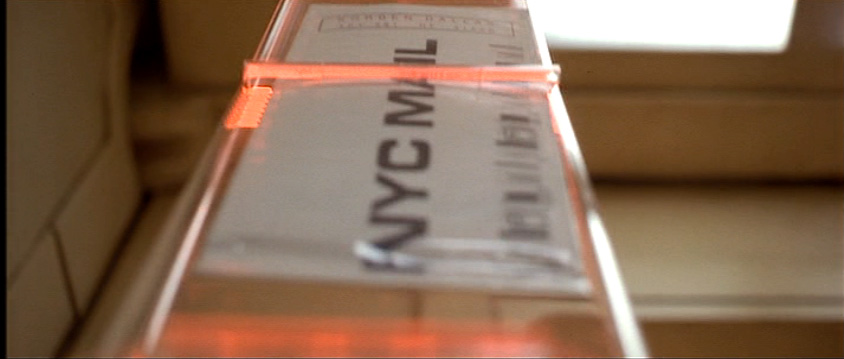

To retrieve the letter, Korben lifts a hinged side and slides the letter out. The tube hangs at from the ceiling about waist high, to the left of his window desk on the far side of his apartment from the door.

fifthelement-195

The positioning of the tube is nice as the desk is one place he’s likely to put information received there to use: reading and storing if necessary. Another location might have been near the door, to catch his attention in a physical location that he frequents. But infrequent use is not too much of a problem since the edge lighting should catch his attention.

His attention could be drawn more aggressively to the tube by having the light blink a few times at the arrival of new mail, or when he enters the apartment. Presuming the system knows the importance of a given letters—such as when he is fired from Zorg industries—it could offer an additional audio cue, such as a simple statement of "urgent" using the same voice that announces his allotment of cigarettes in the morning.

Another tiny improvement might be to remove the flap entirely, but adding a grip gap at the edge, on the apartment-facing side of the tube. Presuming this wouldn’t mess with the pneumatic or stability of the letter in place, it would save Korben from having to target and raise the flap. Grabbing mail would just be easier.

Oddly, the edge lighting does not disappear when Korben retrieves letters, which is odd given the slight context-awareness that the rest of the apartment displays. The light should turn off or fade once the letter is removed.

The Positronic Ray

by

2

Barbarella-136

To combat the Resistance uprising, Durand-Durand unleashes his dread Positronic Ray. To control it, he approaches a high backed chair and touches a spot on the back. The curved tip of the chair extends upwards a bit allowing him to sit down. As soon as he sits, the tip retracts to rest just above his head and the video panel slides close to him. The ray itself is mounted on a two-axis swivel just behind him, with the barrel pointing out of a horizontal window.

The interface consists of a complex array of transparent knobs mounted on a glowing flat panel, set beneath a large rectangular video screen. While he is using the weapon, we see his hands twiddling some of the shapes clockwise and counterclockwise.

Barbarella-139

The chair interface seems fine, if technically unnecessary, giving the gunner a small ritual feeling of power. The weapons interface, on the other hand, is a disaster. It has around 50 visible controls, none labeled for what they control or their extents, none have the slightest ergonomic consideration, and few are differentiated from the others in shape or placement. Also they’re all transparent, so add a lot of visual noise to the difficultly of use.

From his video screen we can tell that there are only a number of things to control: target (coupled to the camera), beam size (coupled to the camera zoom), and a trigger. Control for these simple variables could be accomplished with a joystick for targeting, a thumb button for triggering, and a slider at his left hand for zoom/beam size. Three controls which Durand-Durand could really think of as two.

Additionally, the screen only shows him what he’s currently focused on, failing to grant any of the field awareness that he’d need to keep the enemy at bay. Ultimately it’s a weapons interface that only a pacifist could love. Admittedly, he’s a mad engineer, and not a mad interaction designer, so maybe it’s just his insanity that explains this fiddly spread of extraneous controls with poor mapping and myopic feedback.

I’d love to credit this bad interface with saving the people of the city of SoGo, but unfortunately if its destruction hadn’t come from the Positronic Ray, it would have come from being swallowed by the Mathmos. Ultimately, they were doomed.

SoGo, destroyed

Self-Destruct

by

2

Barbarella-140

Furious at Durand-Durand’’s betrayal, the Black Queen walks to a set of five shoulder-height levers, each baroquely shaped, transparent, and hinged to a base on the floor. She pulls the middle one, and a bright white light below the base begins to glow. She then pulls the first lever. She glances at the fourth, but then changes her mind and pulls the fifth one, explaining that she is unleashing the Mathmos to devour the city. The Queen’’s brief hesitation implies that this isn’’t just an interface, but a self-destruct mechanism that must be activated in some particular, secret order to take effect. Upon completion of the sequence the city begins to fall into the liquid creature, Mathmos, that lives beneath the city.

Barbarella-144

The Excessive Machine

by

2

When Durand-Durand captures Barbarella, he places her in a device which he calls the “Excessive Machine. She sits in a reclining seat, covered up to the shoulders by the device. Her head rests on an elaborate red leather headboard. Durand-Durand stands at a keyboard, built into the “footboard” of the machine, facing her.

The keyboard resembles that of an organ, but with transparent vertical keys beneath which a few colored light pulse. Long silver tubes stretch from the sides of the device to the ceiling. Touching the keys (they do not appear to depress) produces the sound of a full orchestra and causes motorized strips of metal to undulate in a sine wave above the victim.

When Durand-Durand reads the strange sheet music and begins to play “Sonata for Executioner and Various Young Women,” the machine (via means hidden from view) removes Barbarella’s clothing piece by piece, ejecting them through a tube in the side of the machine near the floor. Then in an exchange Durand-Durand reveals its purpose…

  • Barbarella
  • It’s sort of nice, isn’t it?
  • Durand-Durand
  • Yes. It is nice. In the beginning. Wait until the tune changes. It may change your tune as well.
  • Barbarella
  • Goodness, what do you mean?
  • Durand-Durand
  • When we reach the crescendo, you will die of pleasure. Your end will be swift, but sweet, very sweet.

As Durand-Durand intensifies his playing, Barbarella writhes in agony/ecstasy. But despite his most furious playing, he does not kill Barbarella. Instead his machine fails dramatically, spewing fire and smoke out of the sides as its many tubes burn away. Barbarella is too much woman for the likes of his technology.

I’m going to disregard this as a device for torture and murder, since I wouldn’t want to improve such a thing, and that whole premise is kind of silly anyway. Instead I’ll regard it as a BDSM sexual device, in which Durand-Durand is a dominant, seeking to push the limits of an (informed, consensual) submissive using this machine. It’s possible that part of the scene is demonstration of prowess on a standardized, difficult-to-use instrument. If so, then a critique wouldn’t matter. But if not…Since the keys don’t move, the only variables he’s controlling are touch duration and vertical placement of his fingers. (The horizontal position on each key seems really unlikely.) I’d want to provide the player some haptic feedback to detect and correct slipping finger placement, letting him or her maintain attention on the sub who is, after all, the point.
